** NOTE: Ryzen 4100, 4500, 4600G, 5500, 5700X, 5800X3D, 5600G & 5700G CPUs may require a BIOS update **
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.
Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen’s cores, comprehensive cooling, and support for faster memory – so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customised gaming setup that reflects your personal style.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
| Weight | 1.68 kg |
|---|---|
| Brand | |
| MPN | |
| EAN |
SPECIFICATION
Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD B550
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 3rd Gen AMD Ryzen CPUs:
4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Next Gen AMD Ryzen PRO CPUs:
5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Maximum Memory: 128GB
Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types
Graphics Ports:
1 x HDMI
1 x DisplayPort
Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
PCI/PCI Express: 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Storage:
6 x SATA III
2 x M.2 (2242/2260/2280/22110) – SATA & PCIe
RAID: RAID 0, 1, 10
Wireless: N/A
LAN: 2.5GB LAN
Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
USB Ports Supported: 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

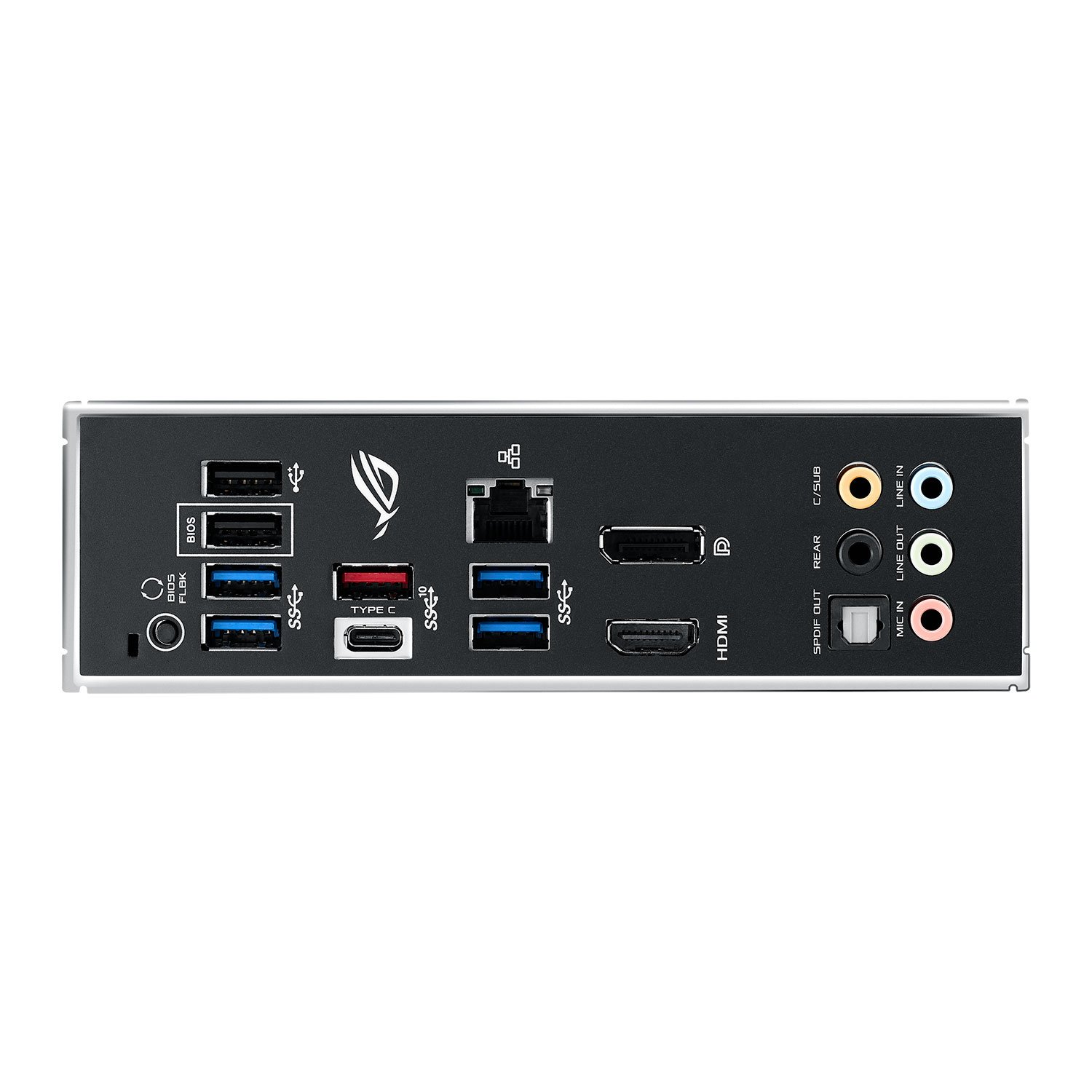

Back Panel I/O Ports:
1 x Intel I225-V 2.5Gb LAN
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen2 (Type-A & C)
4 x USB 3.2 Gen1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack Button
5 x Gold-plated audio jacks
ASUS Wi-Fi module
Internal I/O Connectors:
1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x AAFP
2 x Aura RGB Strip
1 x Addressable Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
2 x M.2 Socket 1 with M key
6 x SATA 6Gb/s
1 x Thunderbolt 1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x System panel
1 x Thermal sensor
1 x Clear CMOS jumper
Accessories:
4 x SATA 6Gb/s cables
1 x ROG Strix sticker
1 x Cable ties pack
1 x Ext cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package
1 x M.2 Rubber Package
Package Type: Retail
