NOTE:
Intel 14th gen CPUs may require a BIOS update
ASRock Z790 PG SONIC, an officially licensed motherboard featuring SEGA’s Sonic the Hedgehog.

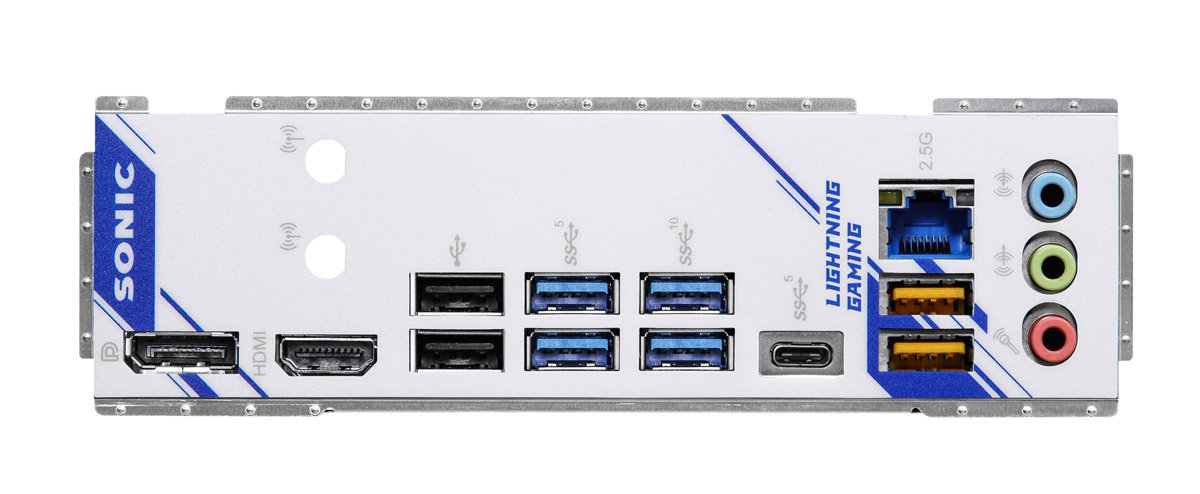

A 16-bit spinning ring emblazons the rear IO cover, while on the rear side you’ll even catch a glimpse of Sonic mid-run. The ASRock motherboard is co-launched to celebrate the release of SEGA’s new Sonic Frontiers game.
Designed to bring back epic memories of catching rings in Green Hill Zone, the motherboard echoes Sonic’s lightning speed with its fast blue and silver shards and Sonic silhouette.
| Weight | 2.4 kg |
|---|---|
| Brand | |
| MPN | |
| EAN |
SPECIFICATION
Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
CPU Support: Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6800+(OC)
Maximum Memory: 256GB
Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports:
1 x HDMI
1 x DisplayPort
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x1
Storage:
8 x SATA III
1 x M.2 (2280) – PCIe
1 x M.2 (2280) – PCIe
1 x M.2 (2260/2280) – PCIe
1 x M.2 (2260/2280) – PCIe
1 x M.2 (2260/2280) – PCIe
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Wireless: No
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: 1 x USB 3.2 Gen2 Type-A (at back)
1 x USB 3.2 Gen1 Type-C (at back)
8 x USB 3.2 Gen1 (4 at back*, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header
*USB32_56 are Lightning Gaming Ports
Back Panel I/O Ports:
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors:
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
1 x Chassis Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC 2 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
Accessories:
1 x User Manual
2 x SATA Data Cables
5 x Screws for M.2 Sockets
Package Type: Retail
